When generating a derating report, RAM Commander compares the actual stress values for each component with those for the guideline’s thresholds. A report can be displayed for all the project’s components, or only for those components whose derating values exceed the corresponding threshold.
The following table describes the available derating reports:
Report |
Description |
|---|---|
Applied values |
Actual stress parameter values |
Applied values (+ defaults) |
Actual stress parameter values; default values appear in fields not explicitly defined for each component. |
All parts derating results |
For each stress parameter for each component, displays derated value, applied value, and the ratio between the two. |
Overstressed parts |
Exception report of stress parameter for each component for which the applied value exceeds the derated value. |
To generate a derating report
| 1. | Activate the Product tree view |
| 2. | Switch to Deraing mode using left button bar |

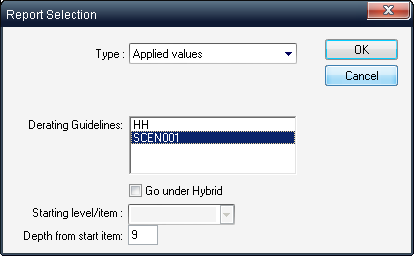

| 3. | From the Reports menu, select Tree; the Report Selection dialog box opens. |
| 4. | Select a report type in the Type list box. |
| 5. | If All parts derating results is selected, or Overstressed parts, in the Type list box, select a guideline from the list box. |
| 6. | Choose OK. |
RAM Commander displays the derating report in a report window.

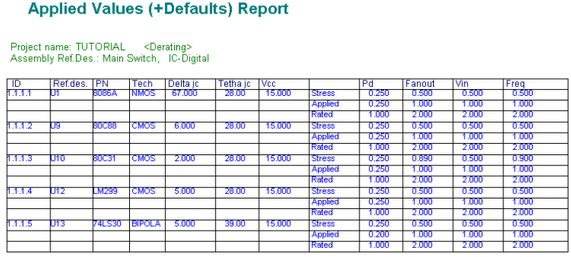

(Segment of a derating report showing derated value, applied value, and the stress percentage.)
See also "Reports" paragraph in the RAM Commander Fundamentals chapter for more general information about reports.
