Zonal Analysis Procedure permits appropriate attention to be given to electrical wiring installations. Thus, as well as determining zonal inspections, the logic provides a means to identify applicable and effective tasks to minimize contamination and to address significant wiring installation discrepancies that may not be reliably detected through zonal inspection. These dedicated tasks may subsequently be included in the Systems and Power Plant tasks.

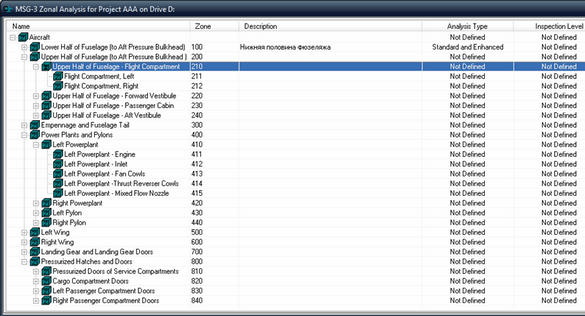

In order to perform the Zonal Analysis, divide the aircraft externally and internally into zones as defined in ATA iSpec 2200 (Major zones, sub zones, areas). Each zone can include multiple elements. Those elements can be a structure element or L/HIRF element or any other aircraft element located in this zone.





Detailed guide on this module is available on demand from ALD.
