RAM Commander Safety Module suits different standards and safety/hazard analysis types (SAE APR 4761, MIL-STD-882 etc.). It can be customized and used for other recommendations and standards. Some recommendations give different names to the same data and require additional information to be provided. One of such supported recommendations is AFO defined by MOC-2 (Russia). It requires additional fields in the Failure Conditions table and gives different names to failure data.

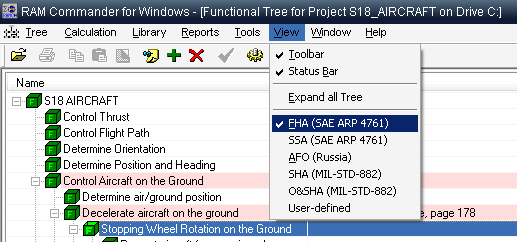

To switch between standards select the desired standard/recommendation name from the "View" section of the main application menu:

The failure conditions table contents will be refreshed and will display columns relevant to the selected mode.



You may also customize the failure conditions table column names and define your own names to columns.

To change the failure conditions table column name:

1. Right - click the desired column header.

2. Popup menu will appear - Choose the "Change column title" option

3. Title dialog box will appear - write down the new title and press ok.

4. The failure conditions table contents will be refreshed and will display the new name.
