RAM Commander may import single fault trees from Isograph FaultTree +.
Import is performed from Excel file which should be previously prepared inside the Isograph Fault Tree+ software, using the "Export" feature.
To perform the export of the fault tree from Isograph Fault Tree+ software:
1. Open Fault tree
2. Choose File->Export option

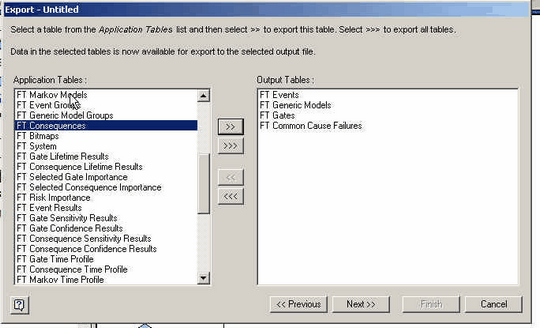

3. Create Excel template with FT Events, FT Gates and other application tables:
The tables you need to include are:
| • | For Isograph FaultTree+ version 10 - FT Events, FT Generic Models, FT Gates, FT Common Cause Failures. |
| • | For Isograph FaultTree+ version 11 - (RBDFTETProjectOptions, FailureModels, PrimaryEvents, Gates) or (FT Events, FT Generic Models, FT Gates, FT Common Cause Failures). |

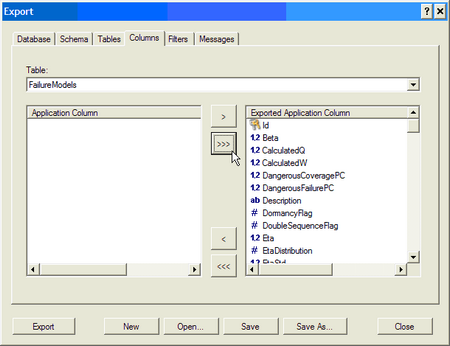

For each table, you should select all the available columns to be exported:
4. Perform the export using this template, creating Excel (XLS) file.
To import Isograph FT+ fault tree into the RAM Commander:
| 1. | Open the desired project and database. |
| 2. | Open the list of fault trees, create new or open any FT. |
| 3. | Choose "Import from Isograph Fault Tree+" option from the Tools menu. |
| 4. | Select the previously created Excel file. |
| 5. | Fault tree will be imported and you will get message about import result. |
