To define tests for FM

1. Select the desired FM.

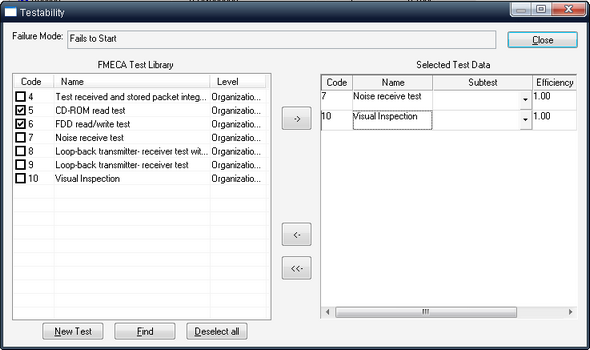

2. In the Detection column, press the <…> button; the Testability dialog box opens. Left part of the screen displays tests library, the right part of the screen displays tests selected for the specific Failure Mode:

FMECA_TAM

3. In the Testability dialog box, you individually select a test from the list of tests (the left part of the screen) by clicking on them or select or deselect them as a group by right-clicking. All tests thus selected will be marked with a "v" and will be linked as a group to the FM when you click the -> button. This selection will remain for all TAM analyses and can be used for other FMs with the same tests list.

4. For each linked test, you can define Indication by choosing an item form the drop-down list and Efficiency by entering the data directly to the grid.

5. Press Close button to return to the FMECA grid. The first selected test will be displayed in the "Detection" field. If there is more than one test, the first name will be followed by "-->>" symbol to indicate multiple tests available but not shown.

To remove a test from the current FM

1.	Select the desired test on the right part of the Testability dialog box and click the <- button.

2.	To remove all tests from the FM, click the <<- button.

3.	Click Close.
