To create a new RBD diagram
|
To create a new RBD diagram |
|
|
|
|
To create a new RBD diagram |
|
|
| 1. | Activate the Product tree view. |
| 2. | From the Modules menu, choose RBD. |

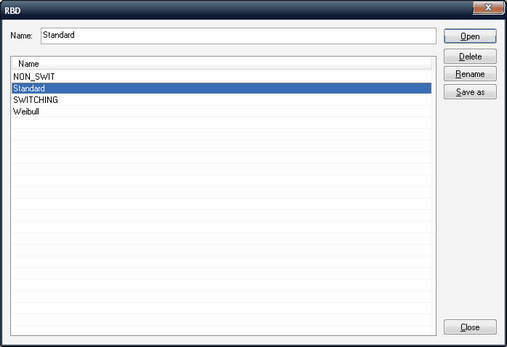

The list of all available RBD diagrams in the current project will appear. From this list you may open, create new, delete, rename and copy RBD diagrams.
| 3. | In the Name edit box enter the name of the new RBD diagram and press "Open". |
4. RAM Commander will display an empty RBD diagram in a new window, like the one shown below:
The diagram contains only an input node, output node, and one insertion node. Insertion nodes are used to create new RBD diagram elements (blocks).
Now you may start adding nodes to your diagrams - see next paragraph for more information.
