Hierarchical Parent Ref.Des. field |
|
|
|
|
Hierarchical Parent Ref.Des. field |
|
|
Hierarchical Parent Ref.Des. field
|
Hierarchical Parent Ref.Des. field |
|
|
|
|
Hierarchical Parent Ref.Des. field |
|
|
Hierarchical Parent Ref. Des. contains parent reference designators of all of the levels above the current component.
For example, for the following BOM file:
Field_1 |
Field_2 |
Field_3 |
Field_4 |
Field_5 |
|---|---|---|---|---|
AAA |
||||
BBB |
AAA |
|||
CCC |
AAA |
|||
DSP |
AAA.BBB |
|||
FLASH |
AAA.BBB |
|||
FLASH |
AAA.CCC |
|||
C2 |
C0603C472K1RAC |
C0603C472K1RAC |
A12 |
AAA.BBB.DSP |
C3 |
C0603C472K1RAC |
C0603C472K1RAC |
A12 |
AAA.CCC.FLASH |
C1 |
C0603C472K1RAC |
C0603C472K1RAC |
A12 |
AAA.BBB.FLASH |

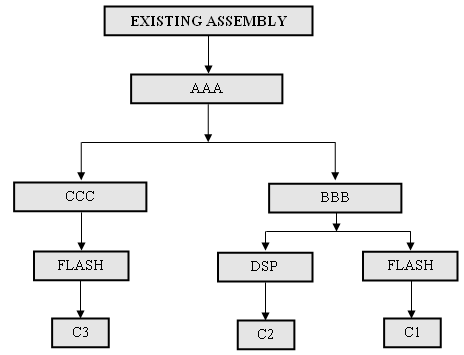

If Field_5 will be defined as Hierarchical Parent Ref. Des., then the result will be:
