RAM Commander Data Flow

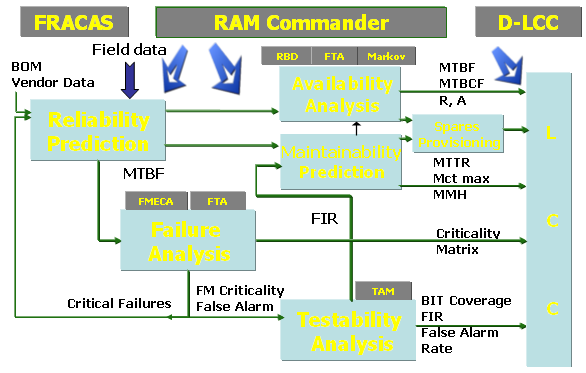

The diagram below provides illustration to the RAM Commander process and explains the data flow between different available analysis types and software modules:

RAMC_Data_Flow

The described data flow is possible due to RAM Commander module integration and common data use by the modules:

•	Reliability (for both Operating and Non-operating mode), Maintainability and Stress Analysis use the same common Product Tree.

•	FMECA module is based on the same product tree as reliability/maintainability analysis

•	RBD module blocks may be linked to Product Tree items and their FMECA Failure Modes, using their calculated MTBF and MTTR.

•	Spare Parts module uses the same Product Tree and Reliability/Maintainability calculation results.

•	FTA module Basic Events may be linked to Product Tree items and their FMECA Failure Modes, using their calculated MTBF and MTTR.

•	Safety Module uses Fault Trees for failure conditions probability calculation.
