To define MIL-472 Procedure 5A maintainability task information

1	If necessary, update the reference designator in the Ref. Des. field.

2	Do one of the following:

*	To append a new task type to the end of the task list, choose Append. The Maintainability Task Description dialog box opens (see above). Follow the steps in the next procedure.

- OR -

Enter the task information directly into the last row marked with an *.

*	To insert a new task type above the one currently highlighted, choose Insert. The Maintainability Task Data dialog box opens. Follow the steps in the next procedure.

*	To edit a highlighted task type, choose Edit. The Maintainability Task Data dialog box opens. Follow the steps in the next procedure.

*	To copy a task, select it and choose Copy. RAM Commander appends it at the end of the task list.

*	To delete a task, select it and choose Delete. RAM Commander deletes the task and redisplays the task list.

*	To set the tasks order – use the move up and move down buttons to move that task accordingly.

3	Choose Close.

RAM Commander stores the maintenance task list for the current item.

Preventive Maintenance

In addition to Corrective Maintenance, Maintainability module supports Preventive Maintenance procedures.

Choose Preventive in Maintenance type list box of Maintainability/RCM dialog box. Click on Add button. Add/edit procedure name box appears. Enter required procedure and click on OK.

In Preventive Maintenance procedure type list box choose Condition Monitoring, Failure Finding, or Restore or Discard.

A number of different maintenance procedures may be defined, each procedure with its own frequency.

The frequency may be user-defined or optimized.

Choose Task type and enter Task description.

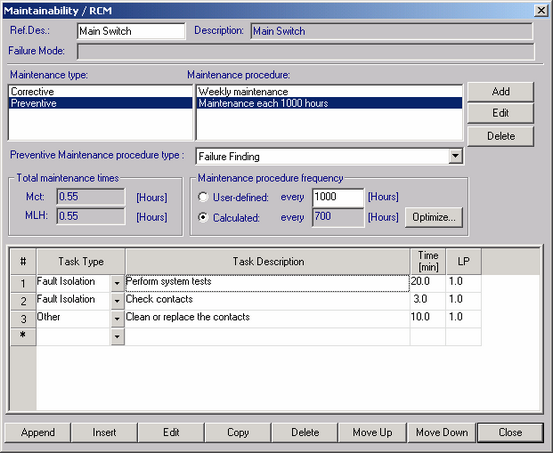

Your screen looks like below:

_img180

You can edit or delete your defined maintenance procedures by clicking respectively on Edit or Delete buttons in the upper right hand part of the screen.
