To review optimal spare part quantities

1.	From the Modules menu, select Spare Parts, Optimization; the Spare Optimization dialog box opens.

2.	Select the required scenario.

3.	In the Select point by group box, do one of the following:

•	Select Cost, and enter a cost value in the field below.

•	Select Criterion, and enter a value for NSP or Availability in the field below.

•	Select Point #, and enter a value for one of the evaluation points in the field below.

4.	Choose Quantities.

RAM Commander displays the quantity report in a window.

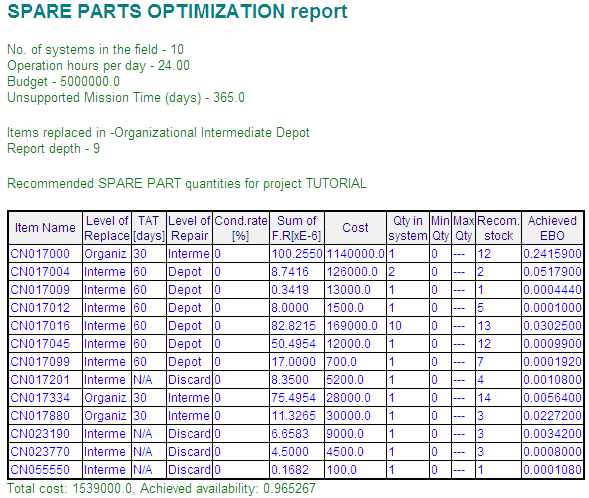

The output below, taken from the Spare Part quantities report, provides the exact number of spare parts providing the optimum availability for the selected point:

Spares_Opt_Report_Qty

The detailed report displays results computed during the optimization. The following table describes the lookup logic.

Select point by	Result used
Point #	Entered point
Cost	Highest cost less than or equal to the entered value
Criteria	Lowest NSP/availability greater than or equal to the entered value
