Parent Ref. Des. (reference designator) contains the parent's name of the component whose data is defined in the current row.
For example, for the following BOM file:
Field _1 |
Field_2 |
Field_3 |
Field_4 |
Field_5 |
|---|---|---|---|---|
C2 |
C0603C472K1RAC |
C0603C472K1RAC |
A12 |
DSP |
C3 |
C0603C472K1RAC |
C0603C472K1RAC |
A12 |
FLASH |
C1 |
C0603C472K1RAC |
C0603C472K1RAC |
A12 |
DSP |

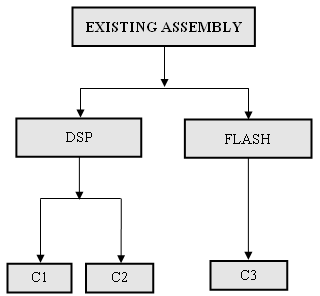

If you define Field_5 in the Parent Ref.Des. column, and Field_1 in the Ref.Des. column, the result, after importing, will be:
